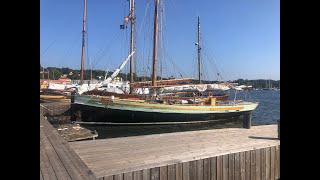

Steel Gaff Cutter  Please refer to WOODENSHIPS.CO.UK    for more information
 (REF: 31046)
€275000
Designer: Mylne Classic Yacht Design
Builder: Stal Komplex, Poland
Year: 2017
Location: Stockholm
Length on deck: 61'6"
Beam: 18'6"
Draft: 8'9"
Tonnage: 77TM

Full specification
Construction | Rig | Machinery | Accommodation | Equipment
Wooden Ships Comments on this Steel Gaff Cutter
The owner of this fine vessel conceived an idea of building a new gaff cutter based on the Lowestoft sailing trawlers.
Mylne Classic Yacht Design were engaged to produce the design and they took inspiration from the smaller of the Lowestoft sailing drifters.
The hull was built by Stal Komplex, Gdynia, Poland.  The hull completed the RCD assessment and is CE approved to Category C for 15 persons.
Launched in 2017.
The interior fit out has been completed by the owner and since her launch she has been cruised around the Baltic and up to Norway.
A very strong and capable boat with a professionally built hull and excellent rig.  The interior is comfortable and in use, but could be altered to suit a new owner and a new vessel purpose if desired.

Length on Deck                          61’6” / 19.95m
Length Overall                           87’ / 26.5m
Length Waterline                       60’6” / 18.5m
Beam                                            18’6” / 5.64m
Draft                                             8’9” / 2.67m
Thames Tonnage                       77TM
Displacement                              70 tonnes

Construction
Steel hull and decks of 8mm steel plate.
Frames of 10mm steel spaced at 600mm centres.
Ballast of 18 tonnes built into the keel box.
Decks of steel plate with a bulwark set on steel plate stanchions.  Wooden bulwark planking and capping rail.
The aft deck is raised to the capping rail level to increase headroom below.
Dog house/companion hatch made from pine.
Tiller steering with a rudder hung on the stern post.
Rig
Gaff cutter rig on a keel stepped laminated larch mast with a fidded topmast.
Laminated larch boom with slab reefing.
Galvanised wire standing rigging and galvanised rigging screws.  The rigging is fastened to the steel stanchions form the bulwark thus spreading the loads of the rig down into the hull.
4 x Anderson self tailing sheet winches mounted on the deck.
Mainsail, topsail, staysail, jib and working jib all new in 2017 from Lyngor Seilmakerverksted.
Machinery
Steyr SE144 4cyl 144hp diesel engine, new in 2016.  Engine located under port side deck with an alloy deck hatch for easy access.  Approx. 900 hours.
Hydraulic drive system to twin fixed 3 blade bronze propellers.
Cruising speed of 5 knots at 5 litres/hour, max speed of 8 knots
The twin propellers make for easy close quarter handling.
8 x 12 volt batteries supplying 24 volts for ships systems.
Shore power system with Victron Quattro 24/3000/50 combi charger and inverter.
750 litre fuel tank integrated into the aft end of the hull.
1300 litre of fresh water in integral tanks under the cabin sole.
2 x auto electric bilge pumps and 1 x manual bilge pump.
Accommodation
8 berths with 3 doubles and 2 singles.
Headroom of 2.05m midships and 2.1m up forward.
Interior panelled in T&G pine boarding
Steps down from the port offset companion hatch into the main saloon.
Wood burning stove at the base of the companion steps to port.
The aft end of the hull is open plan  with a small double berth under the raised aft deck.
Galley on the centreline between aft area and saloon.  Ikea type galley with an Ikea gas hob and 230 volt oven.  Stainless sink with pressurised hot and cold water.
Centreline passage going forward with  heads compartment to port.  Sanmarin electric sea toilet discharges into a waste tank.  Hand basin and shower with pressurised hot and cold water.
Several cabins in area forward of midships.
Right in the bows is a workshop fully equipped.
Equipment
Simrad NSS Evo2 chart plotter
Nasa wind indicator
Comnav VHF
Log

8 person life raft
16 x lifejackets
Life buoy

80kg Patent anchor
100m x 13mm chain
Blue marine 24 volt windlass
Mooring warps
Fenders
Mainsail            Lyngo Seilmakerverkstec         2017              1275sqft            Good condition
Staysail             Lyngo Seilmakerverkstec         2017              471sqft              Good condition
No.1 jib             Lyngo Seilmakerverkstec         2017              635sqft              Fair condition
No.2 jib             Lyngo Seilmakerverkstec         2017              240sqft              Excellent condition
Topsail              Lyngo Seilmakerverkstec         2017              444sqft              Excellent condition

Mainsail cover
4 x Anderson self tailing winches
Boom gallows
Hatch covers

8 x 12 volt batteries
Victron Quattro 24/3000/50amp combi inverter charger
Steyr 144hp engine
Hydraulic drive system
